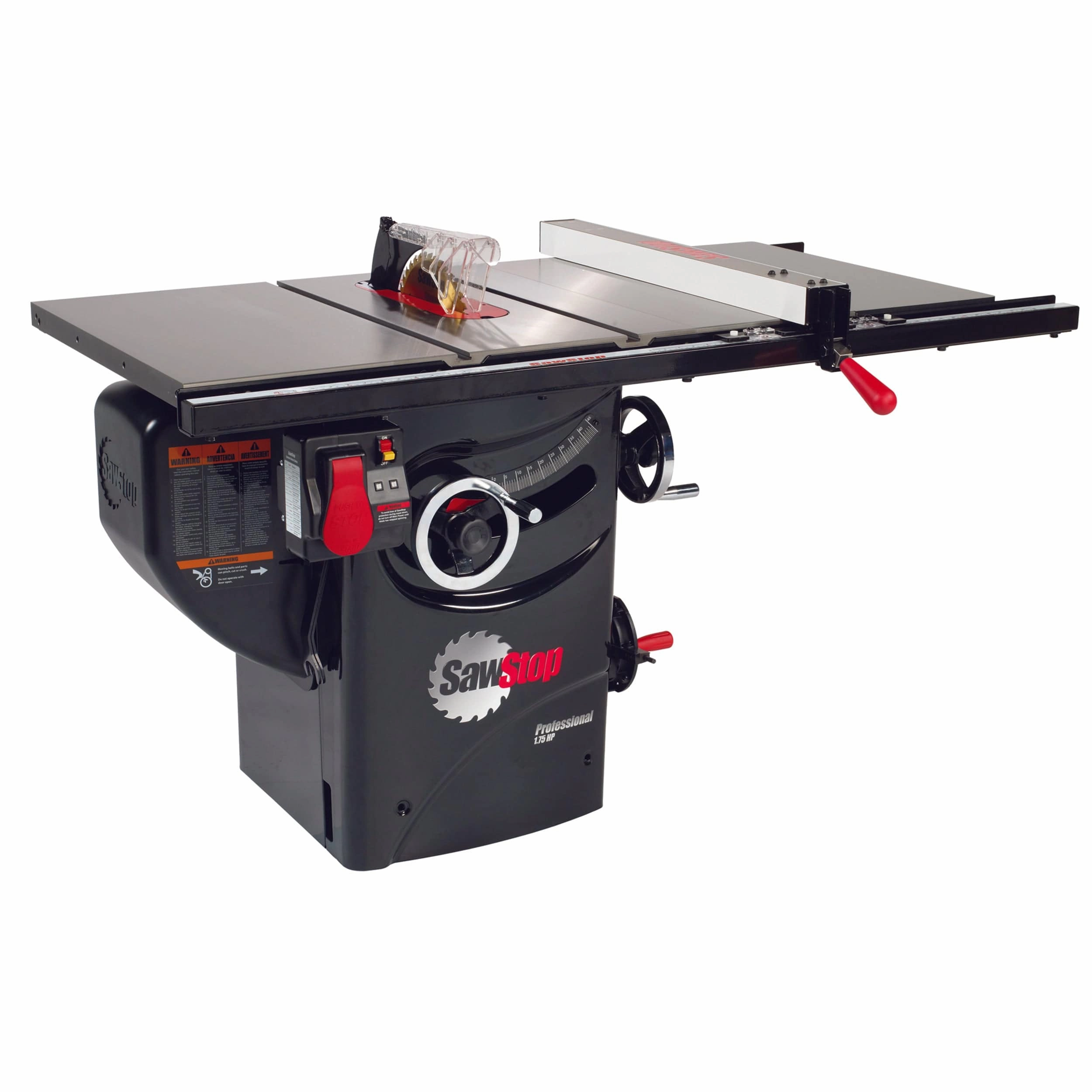

The SawStop® 1.75 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 110V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.
Features:
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Micro Blade Guard
- 30" Premium Fence System provides smooth operation and precise measurement
Specifications:
- Product Type: Cast Iron Table Saw
- Overall Saw Dimensions (W x D x H): 61-3/4" x 31-1/8" x 34"
- Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
- Cast-Iron Table (W x D): 20" x 27"
- Cast-Iron Table Size with Extension Wings (W x D): 44" x 27"
- Motor: 1-3/4 HP, 1-phase, 110V, 14A
- Weight: 367 lbs.
- Blade: 40-tooth, professional grade, 5/8" arbor
- Blade Diameter: 10"
- Blade Tilt: left
- Blade Kerf: 0.118" (3mm)
- Blade Plate Thickness: 0.078"
- Maximum Depth of Cut - Blade at 0º: 3-1/8"
- Maximum Depth of Cut - Blade at 45º: 2-1/4"
- Maximum Rip - Left of the Blade: 12"
- Dado Diameter: 8" (requires a separate brake cartridge and table insert)
- Maximum Dado Width: 13/16"
- Arbor Diameter at Blade: 5/8"
- Table in Front of Blade - Maximum Elevation: 10-1/4"
- Table Behind the Blade - Maximum Elevation: 7-1/2"
- Table Flatness Measured Diagonally: 0.010" maximum gap
- Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-Collection Port Diameter: 4"
- Riving Knife/Splitter Thickness: 0.078" (2 mm)
- Blade Guard: polycarbonate, extends only 5/8" to right of blade
- Insert: zero clearance, steel core, ABS surfaces
- Belts: 2 V-ribbed belts – arbor belt is static dissipative
What's Included:
- (1) SawStop 1.75 HP PCS™ Table Saw Body
- (1) 30" Premium Fence System
